IF Series

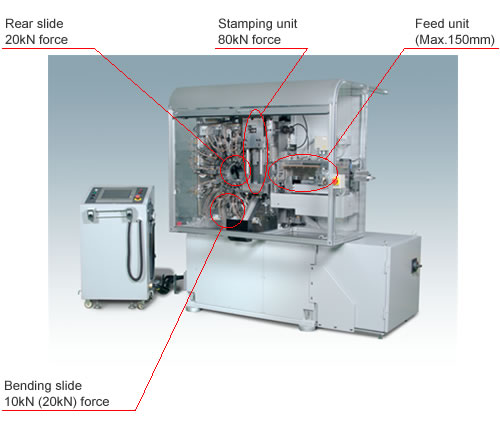

IF-20

Full specification version of type RF-20




IF-60

Full specification version of type RF-60




IF-80

Full specification version of type RF-80


IF Series


Items IF-20 IF-60 IF-80
Material Strip material
(Max.mm)		 50W×1.6t 60W×1.6t 80W×1.6t
Wire material
(Max.mm)		 φ3 φ6 φ8
Feed unit Feeding length
(Max.mm)		 150 150 250
Feed force
(kN)		 0.5 0.5 0.7
Feeding speed
(m/s)		 0.65 0.65 0.55
Vertical adjustment range
(mm)		 ±35 ±35 ±35
Feeding accuracy
(mm)		 0.01 0.01 0.01
Stamping unit Stamping force
(kN)		 80 250 350
Ram stroke
(mm)		 30 35 49
Die height
(mm)		 155 230 335.5
Ram adjustment range
(mm)		 20 20 31
Bolster vertical adjustment range
(mm)		 55 Fixed Fixed
Bolster size
(mm)		 240×115 420×267 590×320
Slide speed
(m/s)		 0.09 0.1 0.09
Bending slide Bending force
(kN)		 10(20) 30 40(80)
Bending stroke (standard)
(mm)		 35(35) 40 70(60)
Number of sets installable (standard/Max.) 7/9 7/11 7/11
Slide speed (standard)
(m/s)		 0.43(0.30) 0.33 0.3(0.21)
Rear slide unit Bending force
(kN)		 20 30 40
Bending stroke (standard)
(mm)		 50 60 80
Number of sets installable (standard/Max.) 1/2 1/2 1/2
Slide speed (standard)
(m/s)		 0.43 0.33 0.3
Main body Power consumption
(V)		 200 200 200
Power capacity
(kVA)		 Approximately
13		 Approximately
28		 Approximately
36
Compressed air supply
(MPa)		 0.5 0.5 0.5
Machine dimensions
(mm)		 1970L × 1170W × 1980H 2100L × 1150W × 2000H 2910L × 1520W × 2260H
Machine weight
(kg)		 2200 3600 7000
Paint color Munsell N7 Munsell N7 Munsell N7
